Airport Runway Markers

Meet FAA runway construction requirements with Genuine THOR Tarp Safety Yellow Runway Markers! The yellow "X" denotes that the runway is closed to all operations such as landing, takeoff and taxiing. Be sure to always check NOTAMs. (NOtices To AirMen.)

Order Now | ThoroWeave 700 Mesh Specifications
Example Airport Runway Site Plan


FAA Runway Markings

September 29, 2011 AC 150/5370-2F
19 Chapter 2 Construction Safety and Phasing Plans

FAA runway markings for a temporariy closed airport runway
Taxiway closure diagram

(b) Temporarily Closed Runways. For runways that have been temporarily closed, place an X at the each end of the runway directly on or as near as practicable to the runway designation numbers. Figure 2-1 illustrates.

(c) Partially Closed Runways and Displaced Thresholds. When threshold markings are needed to identify the temporary beginning of the runway that is available for landing, the markings must comply with AC 150/5340-1. An X is not used on a partially closed runway or a runway with a displaced threshold. See paragraph 207.a(1) above for the difference between partially closed runways and runways with displaced thresholds.

(i) Partially Closed Runways. Pavement markings for temporary closed portions of the runway consist of a runway threshold bar and yellow chevrons to identify pavement areas that are unsuitable for takeoff or landing (see AC 150/5340-1).
(ii) Displaced Thresholds. Pavement markings for a displaced threshold consist of a runway threshold bar and white arrowheads with and without arrow shafts. These markings are required to identify the portion of the runway before the displaced threshold to provide centerline guidance for pilots during approaches, takeoffs, and landing rollouts from the opposite direction. See AC 150/5340-1. AC 150/5370-2F September 29, 2011 Chapter 2 Construction Safety and Phasing Plans 20

(d) Taxiways.

(i) Permanently Closed Taxiways. AC 150/5300-13 notes that it is preferable to remove the pavement, but for pavement that is to remain, place an X at the entrance to both ends of the closed section. Obliterate taxiway centerline markings, including runway leadoff lines, leading to the closed taxiway. Figure 2-2 illustrates. Figure 2-2 Taxiway Closure
(ii) Temporarily Closed Taxiways. Place barricades outside the safety area of intersecting taxiways. For runway/taxiway intersections, place an X at the entrance to the closed taxiway from the runway. If the taxiway will be closed for an extended period, obliterate taxiway centerline markings, including runway leadoff lines, leading to the closed section. If the centerline markings will be reused upon reopening the taxiway, it is preferable to paint over the marking. This will result in less damage to the pavement when the upper layer of paint is ultimately removed.

(e) Temporarily Closed Airport. When the airport is closed temporarily, mark all the runways as closed.

FAA Documents:
AC 150/5340-30G - Design and Installation Details for Airport Visual Aids
AC 150/5370 - 2F - Operational Safety on Airports During Construction


X Marker

RUNWAY CLOSURE MARKERS

Description:
60' x 60' Yellow ThoroWeave 700 Airport Runway CLOSED "X" Safety Marker 10' wide panels of vinyl coated polyester string sewn into a preformed "X" w/ hemmed perimeter & brass grommets @ 3' centers;
Price: $1,057.71 per X marker (ORDER)

Optional Accessory:
Storage Bag - Red Cordura for (1) Airport Runway "X" Safety Marker (90#'s).
Price: $39.60 each (ORDER)

Single X
(For Replacement):

Single X
To close both ends of a small
runway under construction (Two X's):

Both Ends
To close both ends and center of a medium
length runway under construction (Three X's):

Both Ends and Center
To close both ends and center of a jet rated
long runway under construction (Four X's):

Both Ends and Centers

Chevrons

6'x66' "V" shaped Yellow ThoroWeave 700 Airport Runway PARTIALLY CLOSED "Chevron" Safety Marker
Description: 6' wide panels of vinyl coated polyester string mesh sewn into a preformed 90 degree "V" w/ hemmed perimeter & brass grommets @ 3' centers;
Price: $670.09 per Chevron marker (ORDER)

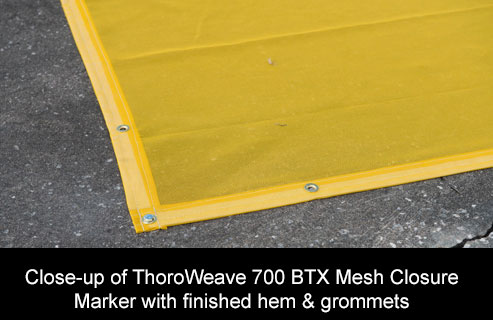

4'x64' "V" shaped Symmetrical HI-VIZ Safety Yellow ThoroWeave 700 BTX Airport PARTIALLY CLOSED "Chevron" Runway Marker
Description: 4' wide panels of vinyl coated polyester string mesh sewn into a preformed 90 degree "V" w/ double needle lock-stitched 3-ply perimeter hemmed with UV resistant #92 bonder polyester thread & brass #2 rolled rim spur grommets @ 30" centers; HI-VIZ Safety Marker {yellow BTX mesh} (40#'s) Important Mfrg Notes: Seams, Perimeter Hem, and Thread: Double flat felled seams, double stitched, and 3-ply perimeter hem sewn with UV resistant #92 bonded polyester thread; Grommets: No. 2 brass rolled-rim spur grommets installed through hem at 30-inch intervals along marker perimeter {Assembly Note: sew 4' x 64' strip to 4' x 60' strip to create a 90 degree "V" that measures 64' from tip to either blunt end on outside edge};
Price: $670.09 per Chevron marker (ORDER)

4'x64' "V" shaped Asymmetrical HI-VIZ Safety Yellow ThoroWeave 700 BTX Airport PARTIALLY CLOSED "Chevron" Runway Marker
Description: 4' wide panels of vinyl coated polyester string mesh sewn into a preformed 90 degree "V" w/ double needle lock-stitched 3-ply perimeter hemmed with UV resistant #92 bonder polyester thread & brass #2 rolled rim spur grommets @ 30" centers; HI-VIZ Safety Marker {yellow BTX mesh} (40#'s) Important Mfrg Notes: Seams, Perimeter Hem, and Thread: Double flat felled seams, double stitched, and 3-ply perimeter hem sewn with UV resistant #92 bonded polyester thread; Grommets: No. 2 brass rolled-rim spur grommets installed through hem at 30-inch intervals along marker perimeter {Assembly Note: sew 4' x 60' strip to 4' x 30' strip to create a 90 degree "V" that measures 64' from tip to LEFT blunt end on outside edge and 30' to RIGHT blunt end};
Price: $644.21 per Chevron marker (ORDER)

Optional Accessory:
Storage Bag - Red Cordura for (1) Airport Runway "V" PARTIALLY CLOSED Chevron Safety Marker (60#'s)
Price: $39.60 each (ORDER)

Chevrons
Note: Diagram shows 3 chevrons to better illustrate proper partial closure of a runway.


Closed Taxiway Detail

Taxi-Way or Large Heliport Closure Markers

30' x 30' Yellow ThoroWeave 700 Airport Taxiway CLOSED "X" Safety Marker

Description:
5' wide panels of vinyl coated polyester string sewn into a preformed "X" w/ hemmed perimeter & brass grommets @ 30" centers
Price: $460.86 per X marker (ORDER)

Optional Accessory:
Storage Bag - Red Cordura for (1) Airport Taxiway "X" Safety Marker (25#'s)
Price: $39.60 each (ORDER)


Offshore Rig and Small Heliport Closure Markers

20' x 20' Hi-Viz Yellow ThoroWeave 700 Heliport CLOSED "X" Safety Marker

Description:
3' wide panels of vinyl coated polyester string mesh sewn into a preformed "X" w/ hemmed perimeter & brass grommets @ 30" centers
Price: $357.58 per X marker (ORDER)

Optional Accessory:
Storage Bag - Red Cordura for (1) Heliport "X" Safety Closure Marker (15#'s)
Price: $39.60 each (ORDER)


Outbard Marker

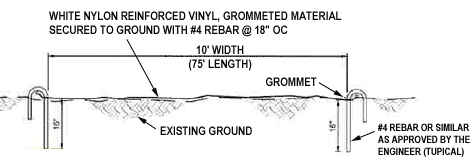

Outboard Threshold Markers

10' x 75' hemmed with brass grommets @ 18" centers

Description:
10' x 75' hemmed with brass grommets @ 18" centers

Price:
ThoroShield 1850 White SOLID Reinforced Nylon - $696.50 (ORDER)
ThoroWeave 700 White MESH Polyester Reinforced Vinyl - $870.63 (ORDER)

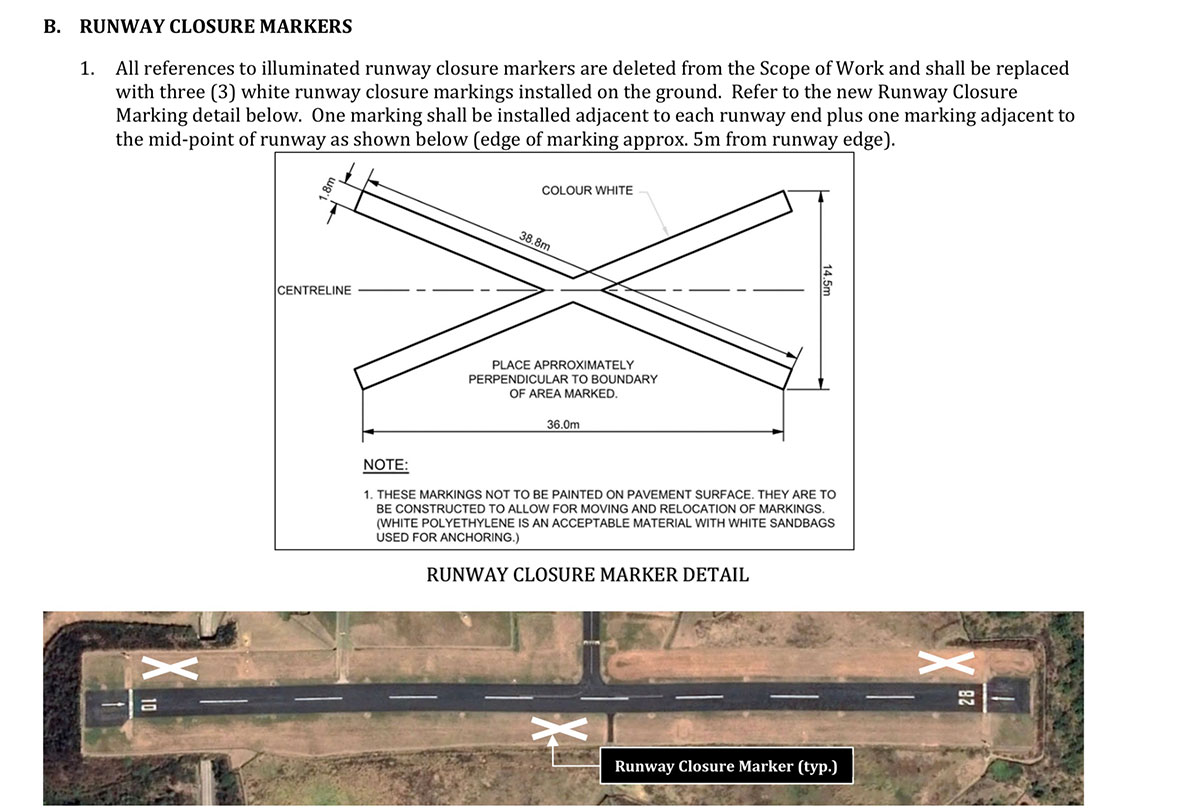

Closure diagramCanadian/Caribbean Elongated White "X" Closure Markers

5' 6' wide x 127' 4" long White/Silver DuraShield 8000 Elongated Runway Closure Marker 12 mil thick, 4-ply woven reinforced polyethylene with WHITE webbing sewn to perimeter and brass grommets @ 30" centers around entire perimeter; finished size per drawing; NOTE: to be deployed WHITE SIDE UP; finished "X" measures 47' 7" (14.5m) across narrow ends and 118' (36m) long from tip to tip.

Price: $624.88 per pre-sewn complete elongated white DuraShield 8000 "X" (ORDER)

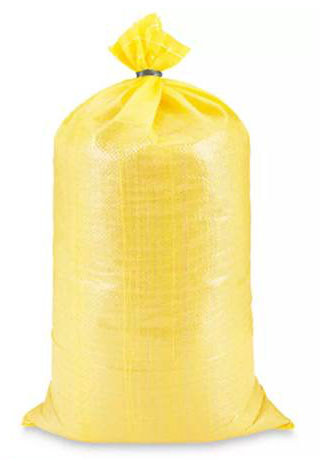

Sandbags - 14"x26", Yellow

Price: $69/bundle
(ORDER)


Standard Black Webbing Border


Quantity Item Unit Price
60'x60' Runway Closure "X" Marker
(Presewn into a completed "X"; just unroll to deploy)
$1,057.71
10'x60' Yellow Mesh Closure Marker Leg
(2 required per 60' x 60' runway closure "X")
$503.13
6'x66' "V" Shaped Yellow Chevron $670.09
4'x64' "V" Shaped Symmetrical Chevron $670.09
4'x64' "V" Shaped Asymmetrical Chevron $644.21
30'x30' Taxi-Way or Large Heliport Closure "X" Marker $460.86
20'x20' Offshore Rig and Small Heliport Closure Markers $357.58
ThoroShield 1850 Outboard Threshold Marker $696.50
ThoroWeave 700 Outboard Threshold Marker $870.63
Canadian/Caribbean Elongated White "X" Closure Marker $624.88
Red Cordura Bag $39.60
Yellow Sandbags (100 bags/bundle) $69.60

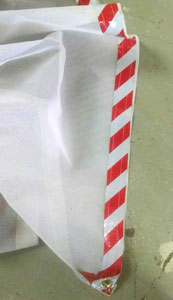

Reflective Border

THOR Lightning Reflective Edged Safety Markers

Quantity Item Unit Price
60'x60' Runway Closure "X" Marker
(Presewn into a completed "X"; just unroll to deploy)
$1,646.80
10'x60' Yellow Mesh Closure Marker Leg with Reflective Edging
(2 required per 60' x 60' runway closure "X")
$863.63
6'x66' "V" Shaped Yellow Chevron $1,325.59
30'x30' Taxi-Way or Large Heliport Closure "X" Marker $757.20
ThoroShield 1850 Outboard Threshold Marker $1,067.95
ThoroWeave 700 Outboard Threshold Marker $1,334.94
Red Cordura Bag $39.60
Yellow Sandbags (100 bags/bundle) $69.60
